An introduction to malware beaconing

Malware beaconing is a technique used by cybercriminals to establish a connection with a Command and Control (C2) server and maintain ongoing communication. This often involves the malware sending out periodic signals or “beacons” to the C2 server at fixed or sporadic (random) intervals, allowing the attacker to maintain control over the infected device while trying to avoid being detected. Beaconing is a critical component of malware and is often used to maintain long-term access to malware on targeted networks.

What is beacon activity?

Beacons refer to any communication on a network that happens at a regular interval. That interval can be fixed or sporadic. Software (and malware) applications can use beacons to provide updates to external services or to receive new information or instructions.

To help us better classify activity as “beacon-like”, we can use a set of rough requirements:

1. The activity happens regularly (but not necessarily at fixed time intervals)
2. The requests are roughly the same from beacon to beacon (and by extension, roughly the same size)
3. The requests are originating from one source and being received by a set of related destinations

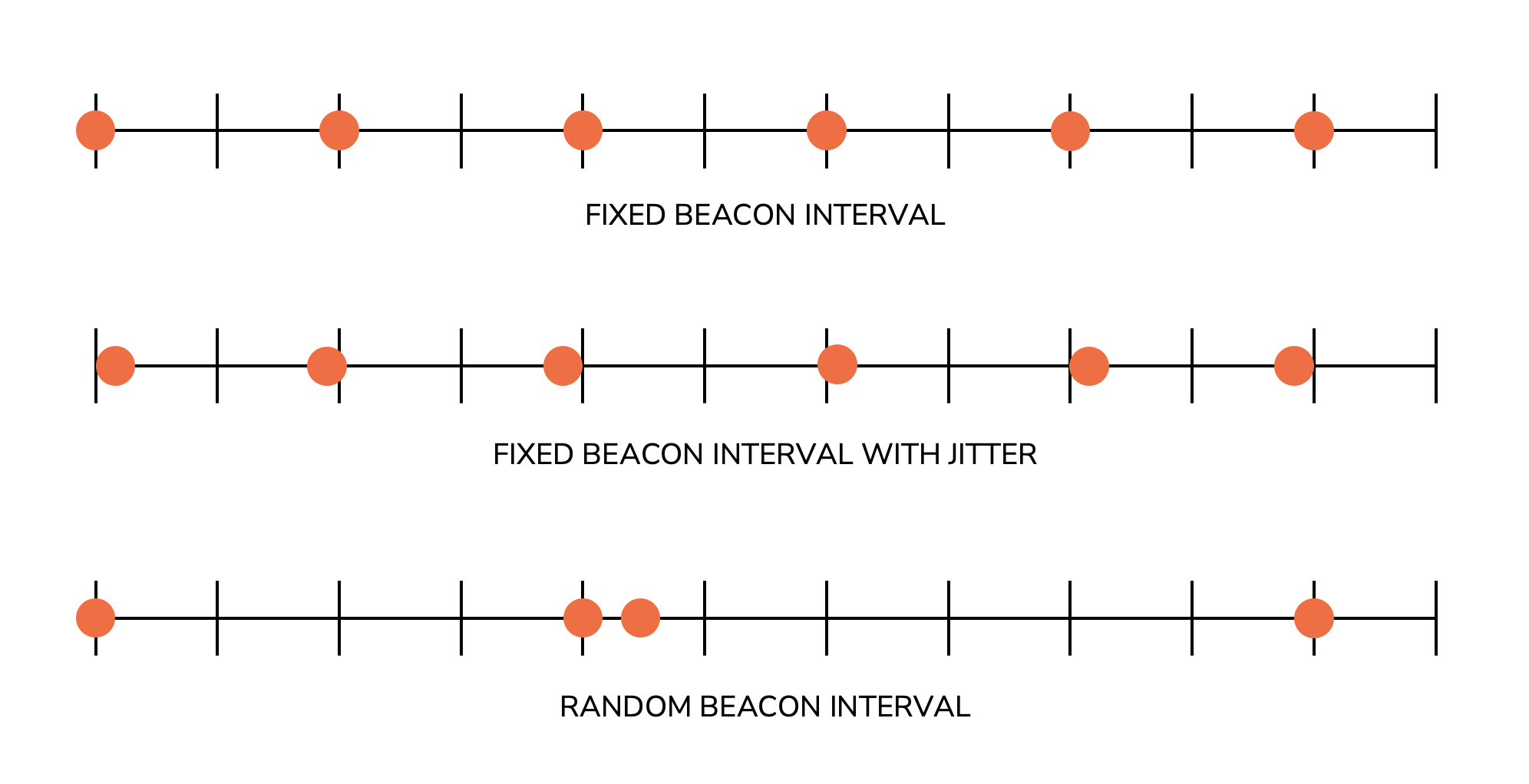

Beacons can occur at fixed intervals (such as every 60 seconds) or they can be completely random. Sometimes a “jitter” value is also added to the beacon interval to confuse attempts to identify the beacon activity. Jitter is a random amount of time variance added to the beacon interval to make it harder to detect the beacon activity. Legitimate applications don’t have much incentive to introduce jitter, but malicious ones do.

Completely random beacon intervals come with tradeoffs for the malware (or software) author: they may be harder to detect, but they are unpredictable. If the malware needs fast execution of its instructions, random beacons may not be appropriate. Jitter allows the malware author to blend the anti-detection properties of random beacons with the “regularity” of fixed beacons. We can break a beacon with jitter down into a few parts:

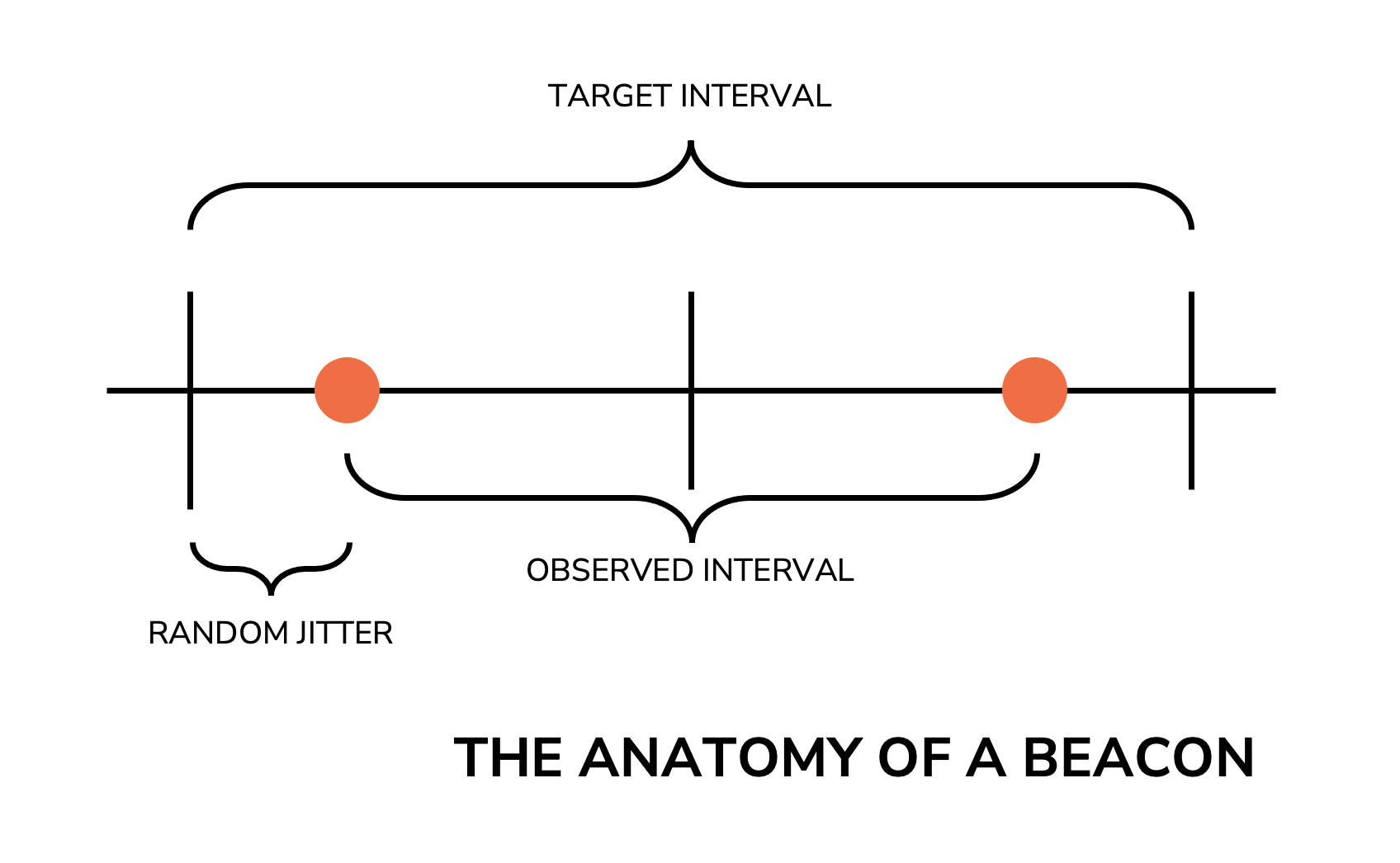

The Target Interval is how often, on average, the beacons should occur. This is a fixed number, such as “60 seconds.” The Random Jitter is a value that is added or subtracted from the beacon interval to add randomness to the beacons. The Observed Interval is the actual interval between a pair of beacons, after the jitter is applied. As defenders, we only ever witness the observed interval since the other values are only known to the application generating the beacons.

Beacons are fairly common and often benign

Unfortunately, beacons aren’t unique to malware. Software of all types use beacons to perform “normal” and otherwise benign functions, such as:

• Checking for software updates
• Retrieving new stories, data, or other information from a server
• Checking if software is licensed
• Reporting usage information

Web pages are a very common source of (benign) beacon activity. Many web pages use asynchronous JavaScript requests to retrieve information, often at regular intervals (often by scheduling these requests using JavaScript’s setInterval function). For example, let’s examine the network traffic generated by visiting a popular news website and letting the page sit idle for a few minutes:

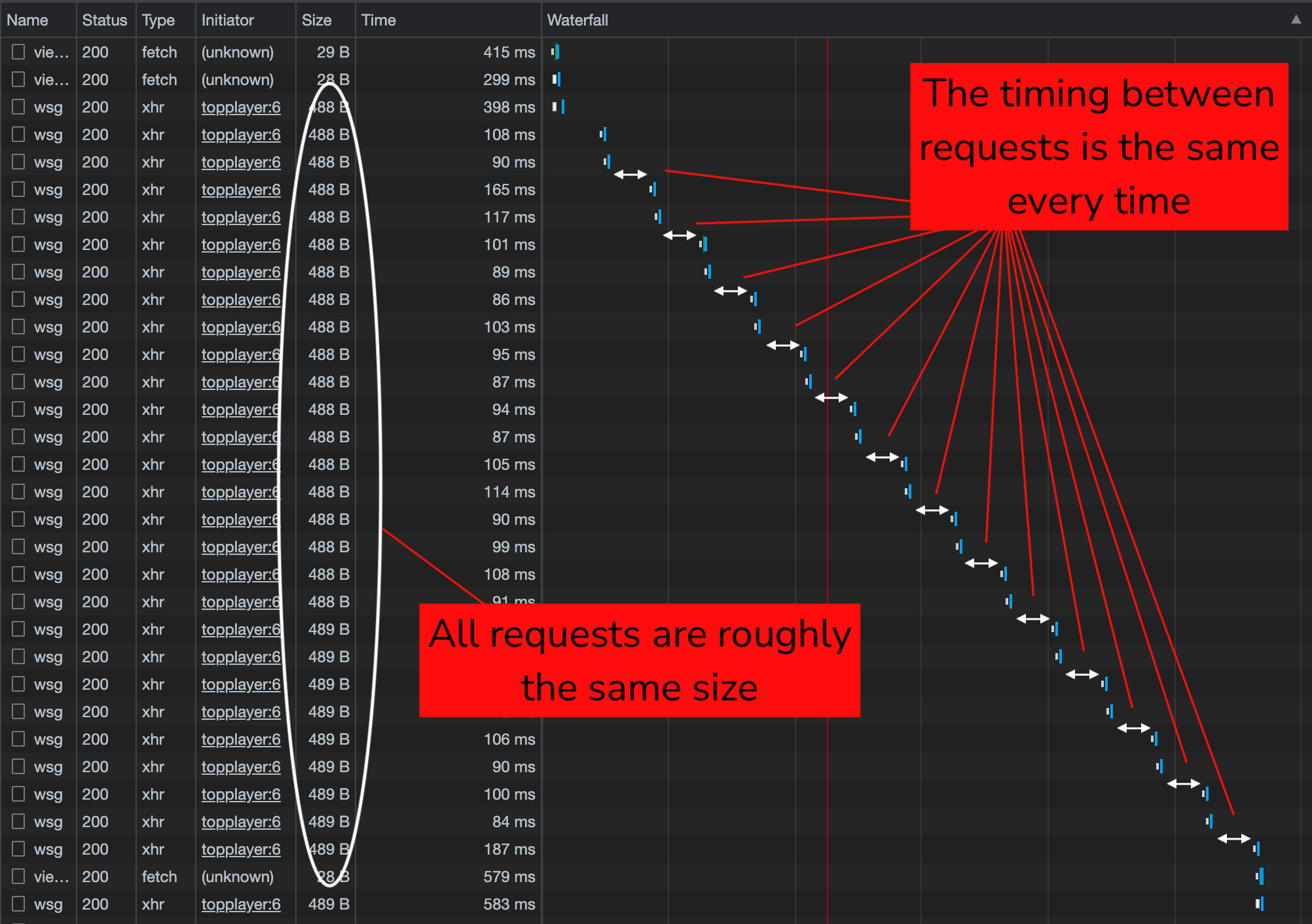

In this screenshot, I have filtered Chrome’s “Network” tab to only show a certain request (named “wsg”). If you look at the “Waterfall” chart, you can see that these requests are all around 488 bytes and appear to come in pairs at a regular interval. This is most certainly within the definition of “beacon” behavior, but in this case we aren’t looking at a malicious beacon. It’s important to be mindful of benign beacons when you’re hunting for malicious ones.

Detecting beacon activity

Threat hunters often seek to identify beacon activity to find malware and compromised hosts on their networks. On the surface, this seems like a relatively straightforward task, but the reality is that there are problems that get in our way, including:

• Benign beacons can be difficult to filter out
• Modern hosts create a large amount of network activity that has to be processed which is multiplied by the number of hosts you are analyzing
• Malware attempts to hide its beacon activity by randomizing intervals or adding “jitter” to the beacon time deltas
• Beacons can be from one host to one host or from one host to many different hosts. This can make detection much harder
• Beacons can occur within data channels that aren’t easy to observe, such as long lived TLS or SSH tunnels

Despite these challenges, there are a few techniques we can use to detect beacon activity. We may cover some of these in depth in future articles in this series:

• Time delta analysis: Calculating the time deltas between connections and finding ones with fixed or nearly fixed intervals
• Fast Fourier Transform (FFT): Using digital signal processing techniques to find “frequencies” in data which can indicate beacon activity
• Brute force: Iterating over every connection pair and finding beacon activity
• Informal beacon detection: Assuming that beacons don’t have to happen on fixed intervals and exploiting that fact to more find beacon activity

It’s important to remember that beacons can manifest themselves across many different protocols and can often be visible in logging at different layers in the OSI networking model. For example, a piece of malware may use DNS beaconing to look for new commands from its C2 server. These beacons would be visible in DNS logs and also in connection logs. If an application used long-lived TLS connections for beaconing, you may not see the beacons in connection logs but you might see them in traffic logged during TLS/SSL inspection.

Conclusion

Beacons can be benign or they can be malicious, which makes them so difficult to deal with. Being able to reliably identify beacon activity is a good way to better understand your network and to help you zero in on communications and network activity that may be of interest.
